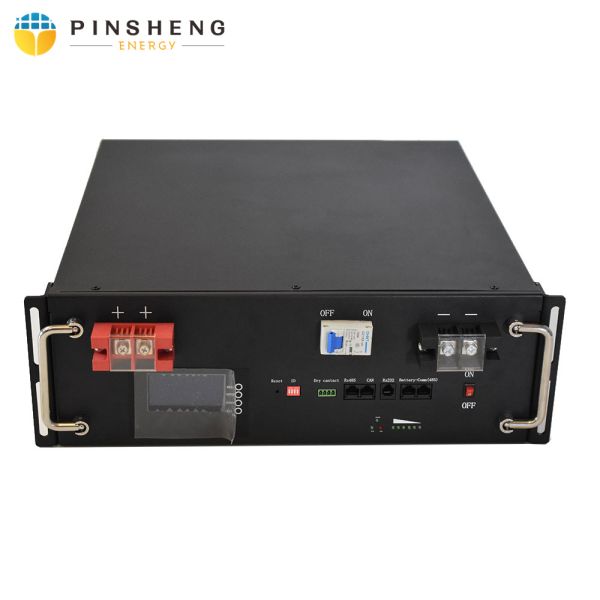

home energy storage systems 48v 5kw 10kw 15kw lithium ion power wall battery pack

Brand Name : Pinsheng Energy

Model Number : PSW22121402

Place of Origin : Hunan, China

Certification : CE ROHS MSDS UN38.3 ISO9001, CE

Packaging Details : STANDARD EPORT PLASTIC BAG, CARTON, PALLET

Supply Ability : 20000 Unit/Units per Month

MOQ : 2 pieces

Price : $120.00/pieces 2-99 pieces

Weight : 44.7kg, 44.7kg

The charging ratio : 50A

The discharge rate : 100A

Storage Type : dry, cool and ventilation

Anode Material : LFP, LFP

Application : Home Appliances, electric vehicles, Solar Energy Storage Systems, Solar energy storage system

Diamention : 482mm(L)x440mm(W)x177mm(T)

Discharging Limit Voltage : 40V

Capacity : 100Ah, 4800Wh @C2, 25℃

Cycle life : >3000 Cycles(80% DOD@C2, 25℃)

OEM/ODM : Accepatable

Chargeable : Yes

Warranty : 3 years

Port : shenzhen

Contact Now

home energy storage systems 48v 5kw 10kw 15kw lithium ion power wall battery pack
Parameter
Battery Type
LFP
Nominal Voltage
48V DC, Customized
Capacity
4800Wh, Customized
Operating Voltage Range
40V DC-54V DC
BMS
Smat BMS
Cycle Life @ 80% DOD
＞3000 Cycles(80% DOD@C2, 25℃)
Dimensions
482mm(L)x440mm(W)x177mm(T)
Serialization
15S1P Customized
Weight
44.7kgs
Charge Current
0.5C 50A Continuous max 1C 50A
Discharge Current
1C 100A Continous max 2C 100A
Charging Shut-off Voltage
57.6V
Discharging Limit Voltage
40V
Charging Under/Over Temp Protection
0℃/55℃
Charging under/over Temp Protection
-20℃/60℃
Balance Current
≤200mA
Self-Discharge Rate
＜3% Per Month
Product Description
home energy storage systems 48v 5kw 10kw 15kw lithium ion power wall battery pack

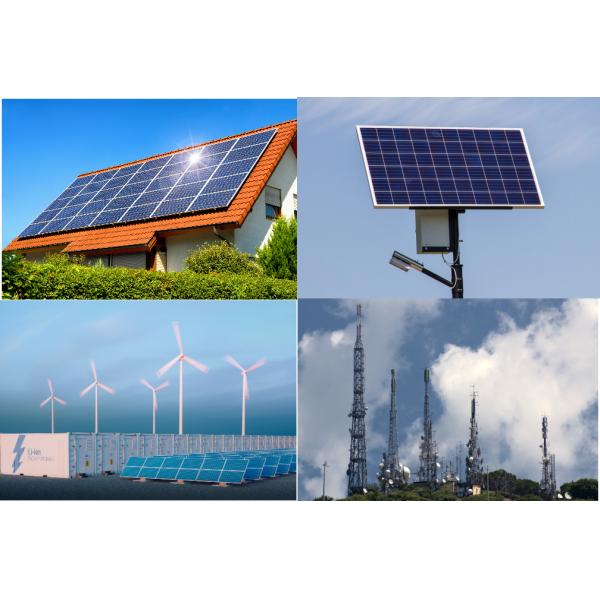

Application
home energy storage systems 48v 5kw 10kw 15kw lithium ion power wall battery pack
Company Profile
Pinsheng Energy with R&D located in Changsha City, Hunan Province, near to Guangzhou. It is a High-Tech Enterprise with 4,000 square meters workshop and 121 staffs. Pinsheng Energyh focus on developing and producing Lithium battery and battery system integration, after many years development and research, we have formed a complete industry chain from research, production to sales. Our lithium battery has the characteristics of longer cycle life, more higher security and more reliability, higher energy density and other superior performance. Our products are widely used in energy storage system such as off grid wind & solar energy storage, telecommunication system, UPS and etc and power system such as electric motorcycles, electric bikes, E- scooter, electric tricycles, golf cart, fork lift,electric vehicles etc. Pinsheng Energy Battery products has a good reputation in China and abroad, it has strict quality guarantee system to ensure high-quality products. Pinsheng Energy put customers' needs at the first and listen to their suggestions. We will continuously improve our product quality and services. Pinsheng Energy is edicated to be a top OEM &ODM lithium battery manufacturer in the world.
Packing & Delivery
home energy storage systems 48v 5kw 10kw 15kw lithium ion power wall battery pack
To better ensure the safety of your goods, professional, environmentally friendly, standard export packaging plastic bags,carton and pallet,and OEM packaging is acceptable.
Workshop Show
home energy storage systems 48v 5kw 10kw 15kw lithium ion power wall battery pack
Certifications
home energy storage systems 48v 5kw 10kw 15kw lithium ion power wall battery pack
FAQ
Q1.what can you buy from us?
Lithium Ion Battery,Lithium Polymer Battery,Lithium Ion Battery Pack,Lithium Polymer Battery Pack
Q2. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q3. What about the lead time?
A. Sample needs 5 days, mass production time needs 7-10 weeks, it depends on order quantity.

Q4. Whats your MOQ ?
A. Our MOQ for mass production depends on the different part numbers. 1~10pcs sample order is available.

Q5. How do you ship the goods and how long is the shipping time?
A. It will be shipped by air transport and sea transport,track delivery,etc.The shipping time is about 7 days to Asia,10-15 days
to Europe and America,15-18 days to Africa.The real shipping time is depends on our quotation.

Q6. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q7. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q8.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q9.How about warranty?
A:3 year warranty
